Impact screen: what you get
An impact screen stops the ball and shows the projected image. Screen size sets the projector distance, and the weave affects image sharpness, noise and bounce-back.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| 7.7 x 10 (4:3) | 77 sq ft | ≈ 4:3 |
| 8 x 10.5 (4:3) | 84 sq ft | ≈ 4:3 |
| 8.5 x 11.5 (4:3) | 98 sq ft | ≈ 4:3 |
| 9 x 12 (4:3) | 108 sq ft | ≈ 4:3 |
| 9.5 x 12.5 (4:3) | 119 sq ft | ≈ 4:3 |
| 10 x 13 (4:3) | 130 sq ft | ≈ 4:3 |
| 7.7 x 13 (16:9) | 100 sq ft | ≈ 16:10 |
| 8 x 14 (16:9) | 112 sq ft | ≈ 16:9 |
| 8.5 x 15 (16:9) | 128 sq ft | ≈ 16:9 |
| 9 x 16 (16:9) | 144 sq ft | ≈ 16:9 |
| 9.5 x 17 (16:9) | 162 sq ft | ≈ 16:9 |
| 10 x 18 (16:9) | 180 sq ft | ≈ 16:9 |
FOREference calculationShape = width ÷ height, matched to the nearest standard aspect ratio. A 16:9 projector on a 4:3 screen uses 75% of its frame; the throw calculator shows the distance for your screen.
Listed details
| Item | Seller figure |
|---|---|
| Type | Premium impact screen |

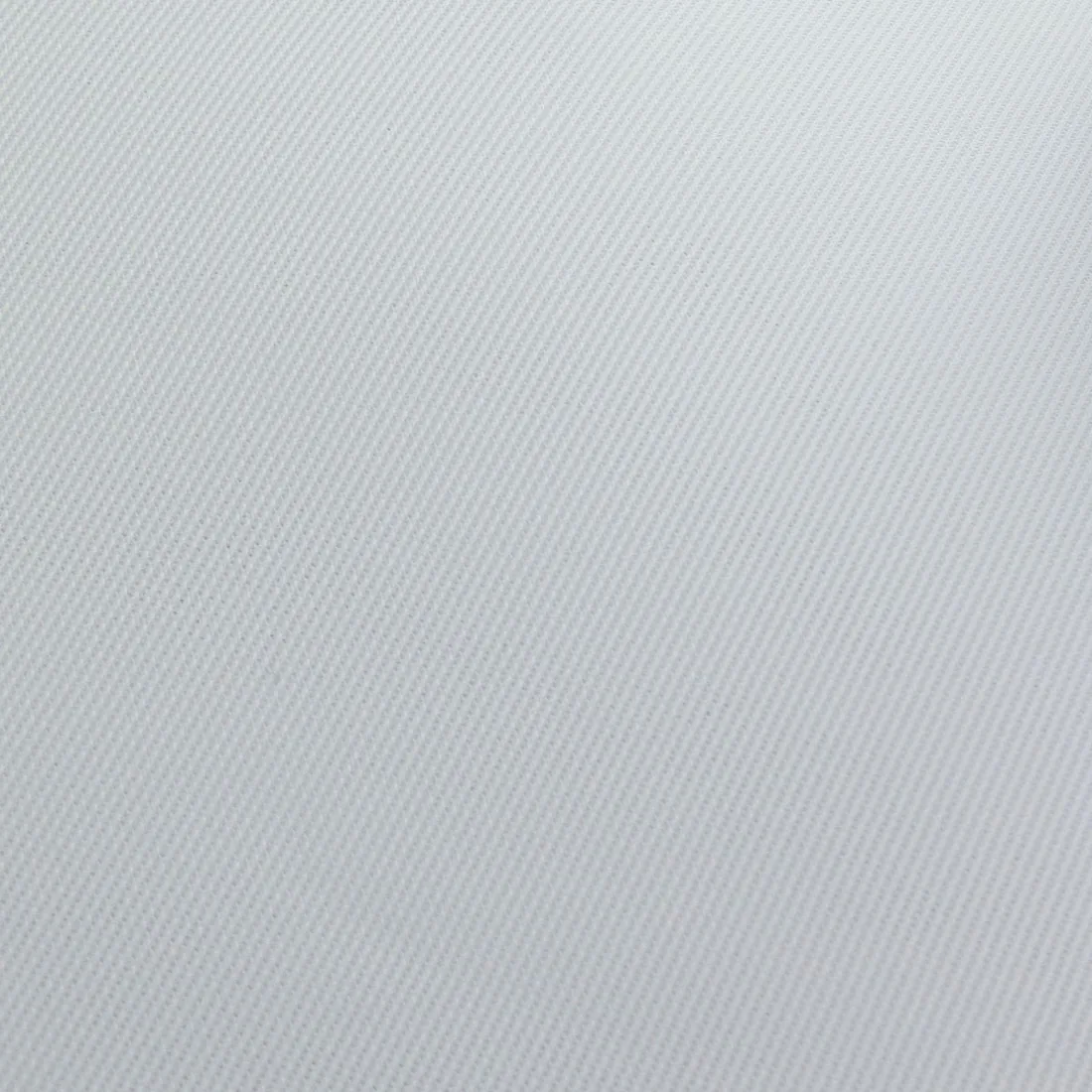

| Surface | White, triple-layer ultra-tight weave |
| Construction | Triple-layer ballistics-grade, commercial-grade durability |
| Configurations | 70+ width and height combinations |

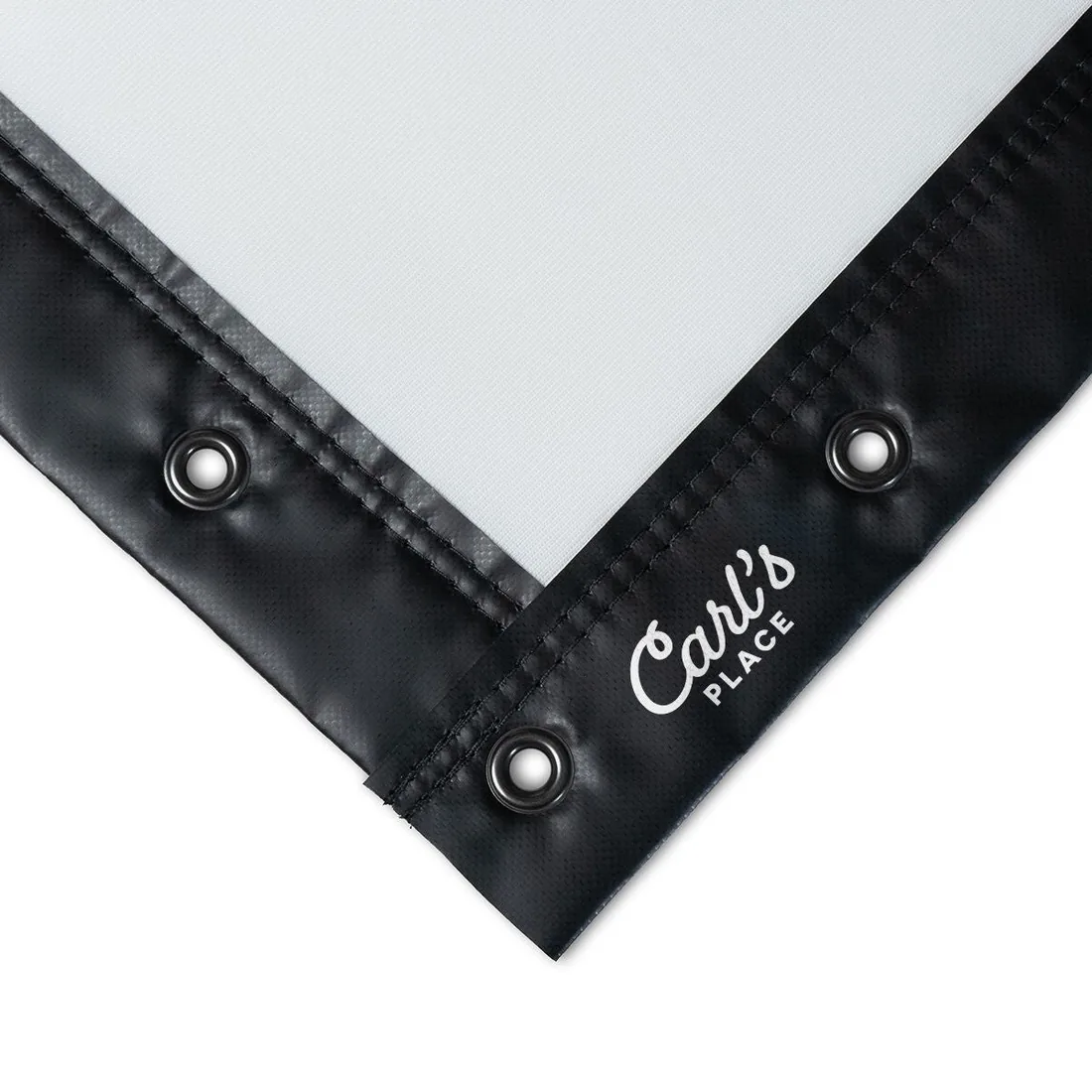

| Mounting | Pre-grommeted, standard bungee/strap mount |
| Best For | Commercial sims, golf academies, premium home builds |
| Manufacturer | Carl's Place |
| Screen | Triple-layer Premium impact screen in selected dimensions |
| Mounting Hardware | Pre-installed grommets for standard bungee mounting |
| Sold Separately | Bungees, framing, launch monitor, projector |
Features the seller lists
- TRIPLE-LAYER, ULTRA-TIGHT WEAVE
- Trusted Since 2016
Other options and materials
- Finishing Style: Classic, Classic with Flaps, Classic with Loop (Velcro) Fastener
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
✓ Required? Check firsti Good to know
- ✓SizeOptions: 7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3)…
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Manufacturer storeRetailer listingFOREference calculationNot verified
Published specifications
| Type | Premium impact screen[S1] | Retailer listing |
|---|---|---|
| Surface | White, triple-layer ultra-tight weave[S1] | Retailer listing |
| Construction | Triple-layer ballistics-grade, commercial-grade durability[S1] | Retailer listing |
| Configurations | 70+ width and height combinations[S1] | Retailer listing |
| Mounting | Pre-grommeted, standard bungee/strap mount[S1] | Retailer listing |
| Best For | Commercial sims, golf academies, premium home builds[S1] | Retailer listing |
| Manufacturer | Carl's Place[S1] | Retailer listing |
| Screen | Triple-layer Premium impact screen in selected dimensions[S1] | Retailer listing |
| Mounting Hardware | Pre-installed grommets for standard bungee mounting[S1] | Retailer listing |
| Sold Separately | Bungees, framing, launch monitor, projector[S1] | Retailer listing |
| Sizes offered | 7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3), 7.7 x 13 (16:9), 8 x 14 (16:9), 8.5 x 15 (16:9), 9 x 16 (16:9), 9.5 x 17 (16:9), 10 x 18 (16:9), 7.7 x 11.5 (16:10), 8 x 12 (16:10)[S1] | Retailer listing |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
Our link opens this exact product page. Prices and stock change; check before you order.
$439.95Rain or Shine Golf listed price (configurations to $1,120) · seen 30 Sep 2026
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the Carl's Place Premium Sim Screen come in?
7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3), 7.7 x 13 (16:9), 8 x 14 (16:9), 8.5 x 15 (16:9), 9 x 16 (16:9)
Where can I buy the Carl's Place Premium Sim Screen?
1 specialist seller list it: Rain or Shine Golf.
Sources and verification
- Rain or Shine Golf — Carl's Place Premium Sim Screen — product page and specifications Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
