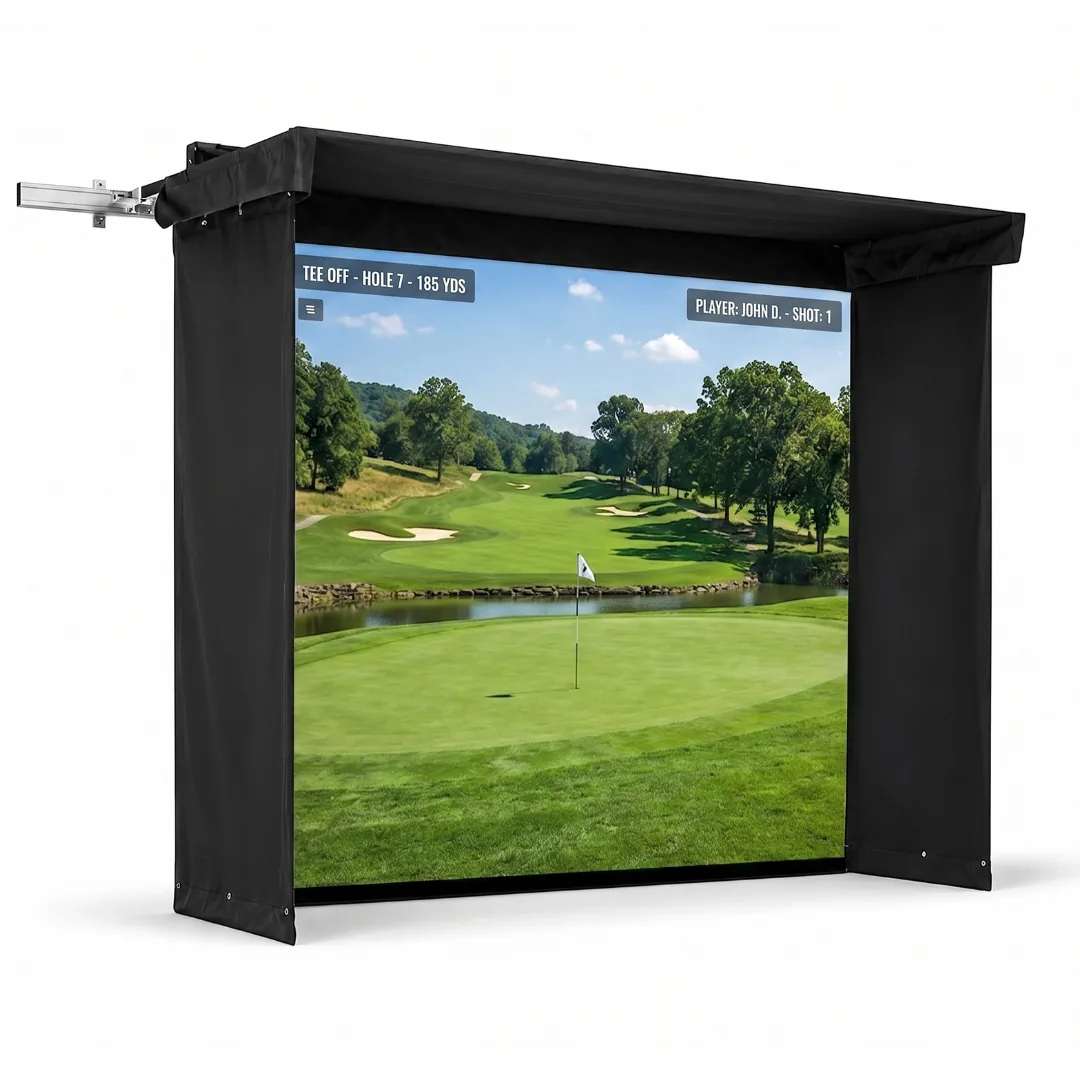

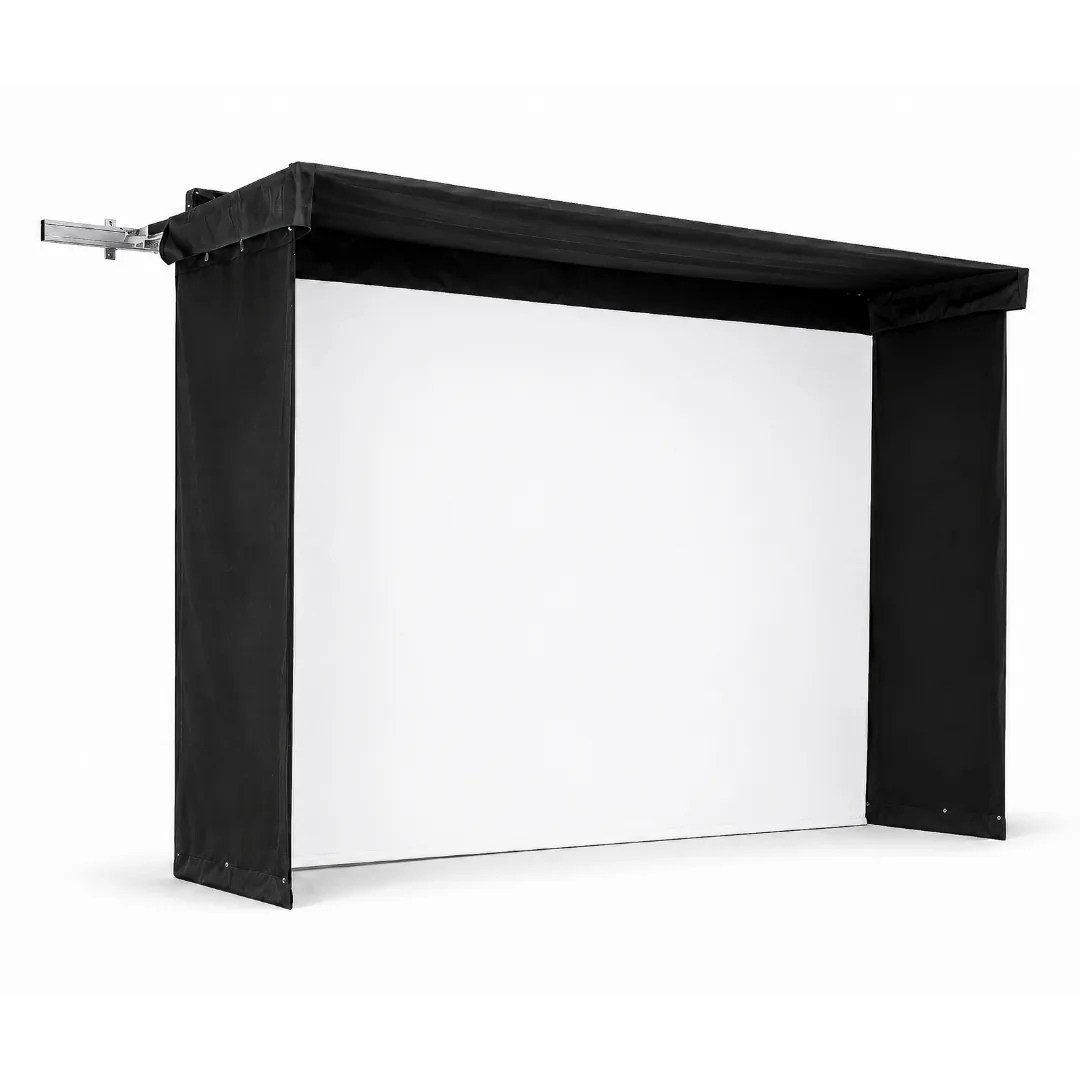

Simulator enclosure: what you get
An enclosure holds the impact screen and side netting in one frame and catches mishits. Its frame size fixes the minimum room width and height, and the screen shape decides which projector setup fills it cleanly.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| 9' Wide | — | — |
| 11' Wide | — | — |
| 13' Wide | — | — |
FOREference calculationShape = width ÷ height, matched to the nearest standard aspect ratio. A 16:9 projector on a 4:3 screen uses 75% of its frame; the throw calculator shows the distance for your screen.
Listed details
| Item | Seller figure |
|---|---|
| Vanish LITE 9 | 1:1 projection ratio — 93” W × 93” H projectable area |
| Vanish LITE 11 | 4:3 projection ratio — 124” W × 93” H projectable area |
| Vanish LITE 13 | 16:10 projection ratio — 148” W × 93” H projectable area |
| Custom Width | Custom front screen widths available up to 13ft. Side curtain depth fixed at 3ft across all configurations. |
| Side Curtains (all models) | Aluminum track width 44.5” · Curtain 50” W × 97.5” H · 3ft depth |
| Ceiling Height (all models) | 108”–124” (9ft to 10ft 4”) |
| Room Depth — Vanish LITE 9 | 111”–124” |
| Room Depth — Vanish LITE 11 | 142”–155” |
| Room Depth — Vanish LITE 13 | 166”–179” |
| Recommended Total Room Length | 180” across all models |
| Back Wall Clearance | 8”–12” behind the rear support membrane |
| Side Wall Clearance | 6”–8” off each side curtain |
| Mounting Surface | One surface required — wall or ceiling |
| Mounting Points | Two anchor points |
Features the seller lists
- Velcro-Free Corner & Baffle System
- Three Standard Widths, Custom to 13 Feet
- Warranty
- 30-Day Returns
- Warranty Support
- 30-Day Returns, No Runaround
- Authorized Dealer — Full Warranty Protection
Other options and materials
- Manual Vs Motorized: Hand Crank, Powered Retraction
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
✓ Required? Check firsti Good to know
- ✓SizeOptions: 9' Wide, 11' Wide, 13' Wide
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Manufacturer storeRetailer listingFOREference calculationNot verified
Published specifications
| Vanish LITE 9 | 1:1 projection ratio — 93” W × 93” H projectable area[S1] | Retailer listing |
|---|---|---|
| Vanish LITE 11 | 4:3 projection ratio — 124” W × 93” H projectable area[S1] | Retailer listing |
| Vanish LITE 13 | 16:10 projection ratio — 148” W × 93” H projectable area[S1] | Retailer listing |
| Custom Width | Custom front screen widths available up to 13ft. Side curtain depth fixed at 3ft across all configurations.[S1] | Retailer listing |
| Side Curtains (all models) | Aluminum track width 44.5” · Curtain 50” W × 97.5” H · 3ft depth[S1] | Retailer listing |
| Ceiling Height (all models) | 108”–124” (9ft to 10ft 4”)[S1] | Retailer listing |
| Room Depth — Vanish LITE 9 | 111”–124”[S1] | Retailer listing |
| Room Depth — Vanish LITE 11 | 142”–155”[S1] | Retailer listing |
| Room Depth — Vanish LITE 13 | 166”–179”[S1] | Retailer listing |
| Recommended Total Room Length | 180” across all models[S1] | Retailer listing |
| Back Wall Clearance | 8”–12” behind the rear support membrane[S1] | Retailer listing |
| Side Wall Clearance | 6”–8” off each side curtain[S1] | Retailer listing |
| Mounting Surface | One surface required — wall or ceiling[S1] | Retailer listing |
| Mounting Points | Two anchor points[S1] | Retailer listing |
| Brackets | Versatile Mounting Brackets included — compatible with sloped and vaulted ceilings[S1] | Retailer listing |
| Install Hardware | All wall/ceiling brackets and assembly hardware included[S1] | Retailer listing |
| Front Impact Screen | Premium 3-ply impact screen — construction-grade, rated for high-velocity shots[S1] | Retailer listing |
| Side Curtains | 2 side curtains on aluminum track system — slide and pin back when not in use[S1] | Retailer listing |
| Sizes offered | 9' Wide, 11' Wide, 13' Wide[S2] | Manufacturer store |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
4 specialist sellers list this exact product. Prices were observed on 30 Sep 2026; confirm the current price, stock and included items before ordering.
| Seller | Listed price | Type |
|---|---|---|
| SportScreen | $2,299.99–$4,299.99 | Manufacturer store |
| Rain or Shine Golf | $2,299.99–$3,549.99 | Specialist retailer |
| PlayBetter | $2,299.99–$3,549.99 | Specialist retailer |
| Golf Bays | $2,299–$4,299 | Specialist retailer |
$2,299.99SportScreen listed price (configurations to $4,300) · seen 30 Sep 2026
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the SportScreen Vanish LITE Hybrid-Retractable Golf Enclosure come in?
9' Wide, 11' Wide, 13' Wide
Where can I buy the SportScreen Vanish LITE Hybrid-Retractable Golf Enclosure?
4 specialist sellers list it: SportScreen, Rain or Shine Golf, PlayBetter and Golf Bays.
Sources and verification
- Rain or Shine Golf — SportScreen Vanish LITE Retractable — product page and specifications Retrieved 30 Sep 2026
- SportScreen — Vanish LITE Hybrid-Retractable Golf Enclosure — product page Retrieved 30 Sep 2026
- PlayBetter — SportScreen Vanish LITE Hybrid-Retractable Golf Studio Enclosure — product page Retrieved 30 Sep 2026
- Golf Bays — Vanish LITE Hybrid-Retractable Golf Enclosure — product page Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
