FOREference
PT-VZ580U

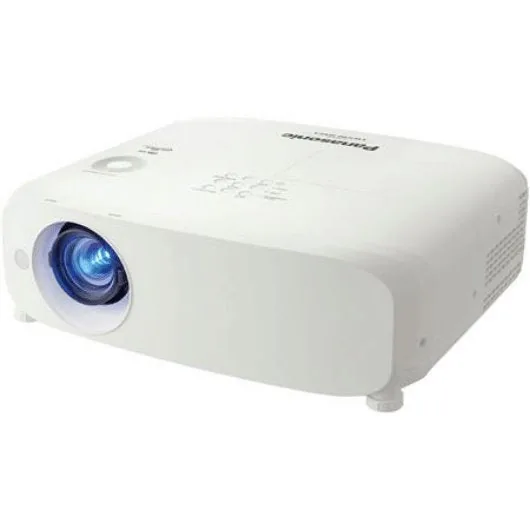

Product image: Panasonic via Shop Indoor Golf

Standard-throw projector · WUXGA

Panasonic PT-VZ580U

Panasonic · 3LCD · 16:10 native

The short answer

The Panasonic PT-VZ580U is a WUXGA lamp projector rated at 5,000 ANSI lumens., and that screen would see roughly 50 foot-lamberts — good in a dim room. Listed at $1,400 from Shop Indoor Golf.

Brightness
5,000 lm
Resolution
WUXGA
Throw ratio
Not published
Light source
Lamp
Price seen
$1,400

Good fit if

  • You have a long room and can mount it well behind the hitting area
  • Your room has some ambient light, or you run a large screen
  • You need lens shift to line the image up without tilting the projector
  • You run a 4:3 or square screen and want more of the chip used (16:10 native)

Look elsewhere if

  • Your room is short — a standard-throw lens needs more distance
  • You don't want to replace lamps (rated 7,000 h)
  • You need the exact throw ratio — it is not published in the listing we used
$1,399.99Shop Indoor Golf listed price · seen 30 Sep 2026
View at Shop Indoor Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Throw distance for simulator screens

Simulator screens are usually 4:3 or square, while most projectors are 16:9 or 16:10. To fill a squarer screen, the projector's full frame is set so its height matches the screen height; the extra width is masked in software. That means the throw distance depends on the projector's native frame width, not the screen width.

ScreenFull 16:10 frame widthLens-to-screen distance
10.5 × 8 ft (4:3)12.6 ftThrow ratio not published
12 × 9 ft (4:3)14.4 ftThrow ratio not published
8 × 8 ft (1:1)12.8 ftThrow ratio not published
12 × 7.5 ft (16:10)12.0 ftThrow ratio not published
14 × 7.9 ft (16:9)14.0 ftThrow ratio not published
FOREference calculationDistance = throw ratio × full frame width. Frame width = screen height × 16:10 when the screen is squarer than the projector. Try your own screen.

How bright will it look?

Brightness on the screen is what the golfer sees. We convert the rated lumens into foot-lamberts (fL) for each screen, counting only the share of the frame that lands on the screen, and assuming a screen gain of 1.0. Real results are lower in eco modes and as the light source ages.

ScreenFrame on screenBrightnessWhat that means
10.5 × 8 ft (4:3)83%50 fLgood in a dim room
12 × 9 ft (4:3)83%39 fLgood in a dim room
8 × 8 ft (1:1)62%49 fLgood in a dim room
12 × 7.5 ft (16:10)100%56 fLbright enough to tolerate some ambient light
14 × 7.9 ft (16:9)90%41 fLgood in a dim room
FOREference calculationfL = rated lumens × share of frame on screen × gain ÷ screen area (sq ft). Cinema reference is roughly 14–16 fL in a dark room.

Resolution and aspect ratio on a sim screen

The seller lists WUXGA (1920 × 1200) with a native 16:10 frame. On a squarer screen part of the frame is unused, so the effective resolution drops.

ScreenPixels on the screenShare of native frame
10.5 × 8 ft (4:3)1,600 × 1,20083%
12 × 9 ft (4:3)1,600 × 1,20083%
8 × 8 ft (1:1)1,200 × 1,20062%
12 × 7.5 ft (16:10)1,920 × 1,200100%
14 × 7.9 ft (16:9)1,920 × 1,08090%

Light source and running

A lamp gradually dims and eventually needs replacing; budget for a spare if you play daily.

Ownership figureValue
Rated light-source life7,000 h
At 2 hours a dayabout 10 years
At 4 hours a day (heavy use)about 5 years
FOREference calculationYears = rated hours ÷ (hours per day × 365). Brightness falls gradually before the rated life is reached.

Fit check: Panasonic PT-VZ580U

Planning checks from the published specification and our screen calculations.

✓ Required? Check firsti Good to know
  • ✓MountingMount sold separately. Short-throw models usually ceiling-mount just in front of the golfer so the swing does not cast a shadow; floor enclosures are an alternative. See projector mounts.
  • ✓Throw distanceThrow ratio not published — confirm with the seller.
  • ?Screen shapeNative 16:10; on a 4:3 screen 83% of the frame is used.
  • ?Image alignmentlens shift: ±40%
  • iCablingPlan an HDMI run from the PC or phone/tablet to the projector; long runs may need an active or fibre HDMI cable.

Specifications

Each figure is labelled with where it comes from. Numbered references link to the source list below.

Manufacturer storeRetailer listingFOREference calculationNot verified

Published specifications

Brightness5,000 ANSI lumens[S1]Retailer listing
ResolutionWUXGA (1920 × 1200)[S1]Retailer listing
Native aspect ratio16:10[S1]Retailer listing
Display technology3LCD[S1]Retailer listing
Light sourceLamp[S1]Retailer listing
Light-source lifeUp to 7,000 hours[S1]Retailer listing
Throw ratioStandard throw (ratio not published in the listing)[S1]Retailer listing
Lens shift±40%[S1]Retailer listing
Contrast16,000:1[S1]Retailer listing

FOREference calculations

Brightness on that screen50 fLFOREference calculation

Limitations to weigh

  • Lamp light source: brightness fades and the lamp needs replacing.
  • Throw ratio not published in the listing we used.
  • Mount, cables and screen are not included.

Alternatives worth comparing

BenQ AH30ST3,000 lm, 1080p, throw 0.69–0.83; $99 more
Optoma ZH350ST3,500 lm, 1080p, throw 0.5; $99 more
EIKI EK-308U6,000 lm, WUXGA, throw 1.07–1.75; $425 more
Panasonic PT-VMZ51S5,200 lm, WUXGA, throw 1.09–1.77; $1,789 more

Where to buy

Our link opens this exact product page. Prices and stock change; check before you order.

$1,399.99Shop Indoor Golf listed price · seen 30 Sep 2026
View at Shop Indoor Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Questions buyers ask

How far from the screen does the Panasonic PT-VZ580U go?
The throw ratio is not published in the listing we used.
Is the Panasonic PT-VZ580U bright enough for a golf simulator?
Rated at 5,000 ANSI lumens, it gives roughly 50 fL on a 10.5 × 8 ft screen — good in a dim room.
Will the Panasonic PT-VZ580U fill a 4:3 golf screen?
Yes, by matching the screen height and masking the sides. Its native 16:10 frame means about 83% of the image is used on a 4:3 screen.
Laser or lamp: which does the Panasonic PT-VZ580U use?
Lamp, rated up to 7,000 hours.

Sources and verification

  1. Shop Indoor Golf — Panasonic PT-VZ580U Golf Simulator Projector — product page and specifications Retrieved 30 Sep 2026

FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
